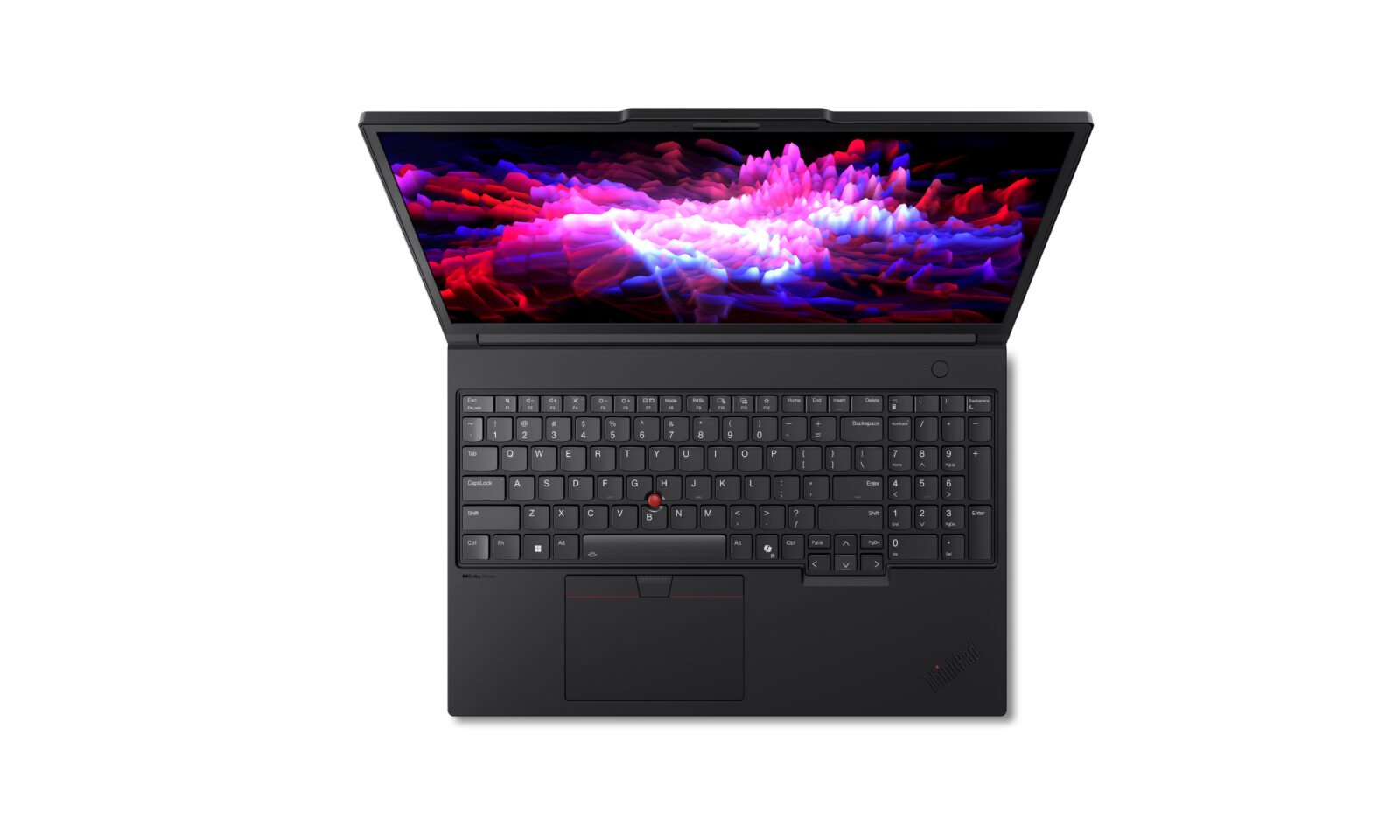

The ThinkPad P16 Gen 3 (Intel) Mobile is a mobile workstation certified for CAD, design and engineering software. This configuration has a Core Ultra 7 processor, 32GB of memory, a 512GB SSD and NVIDIA RTX PRO 1000 Blackwell graphics, running Windows 11 Pro. Free local delivery, with setup and support from our Southampton team. Ask about Managed IT for your office.
22 in stock

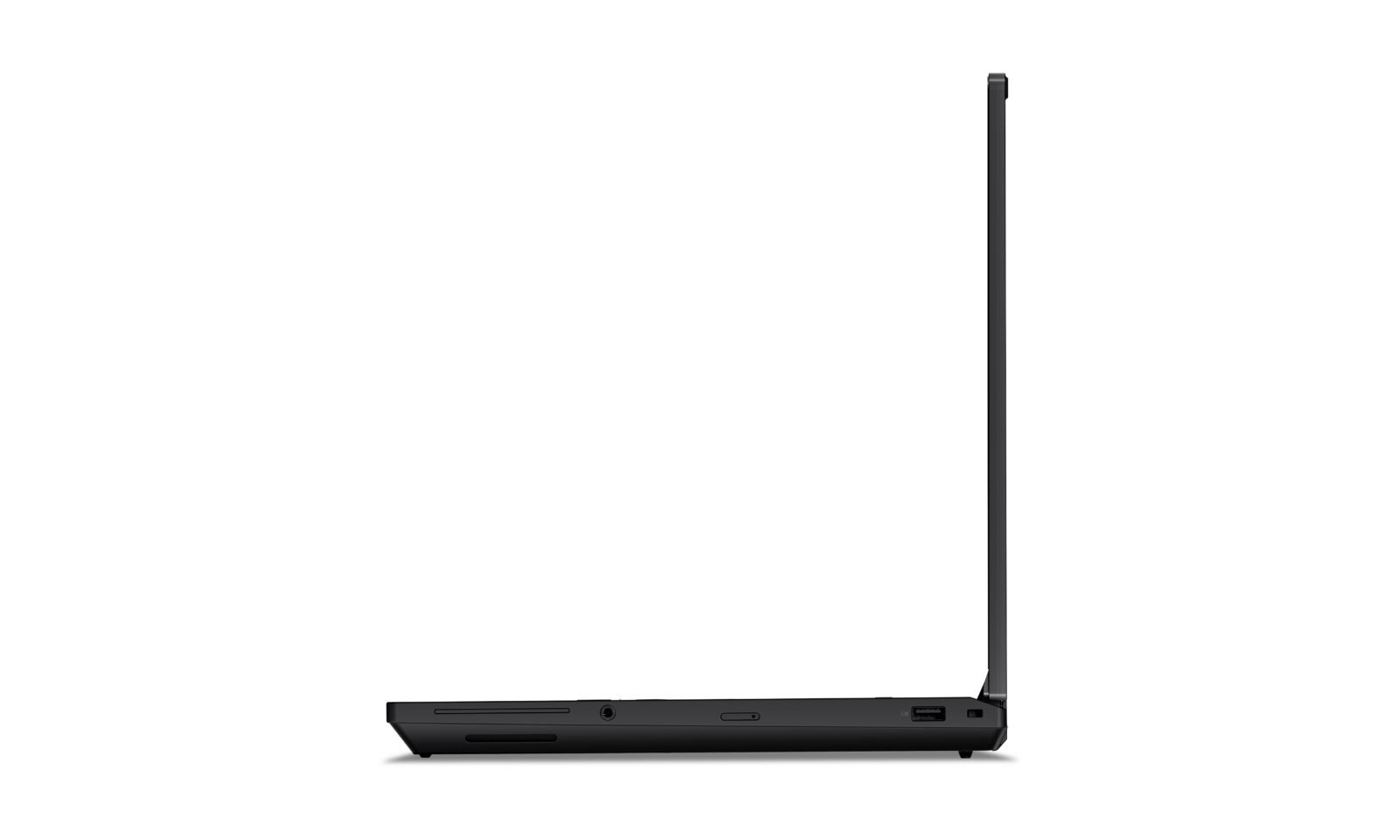

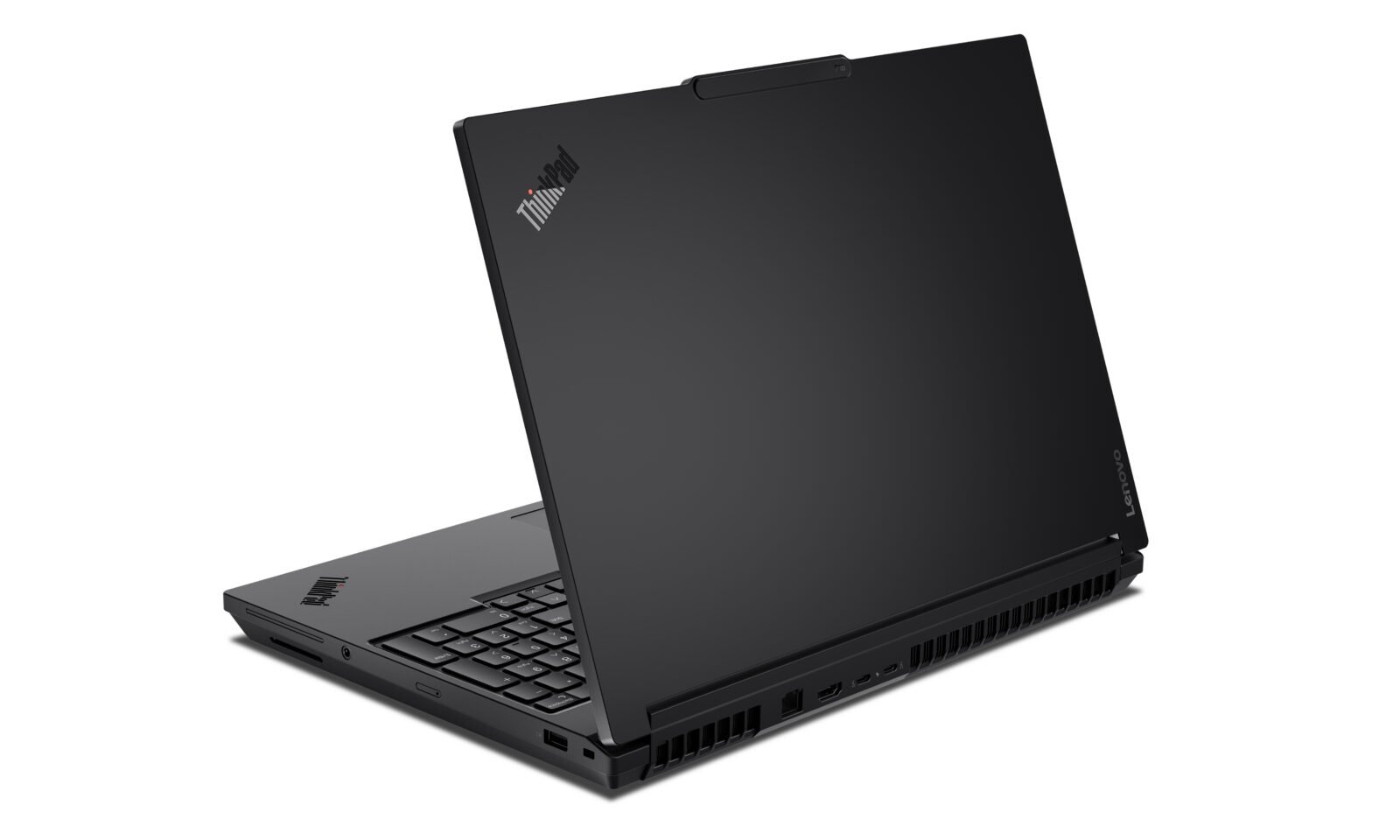

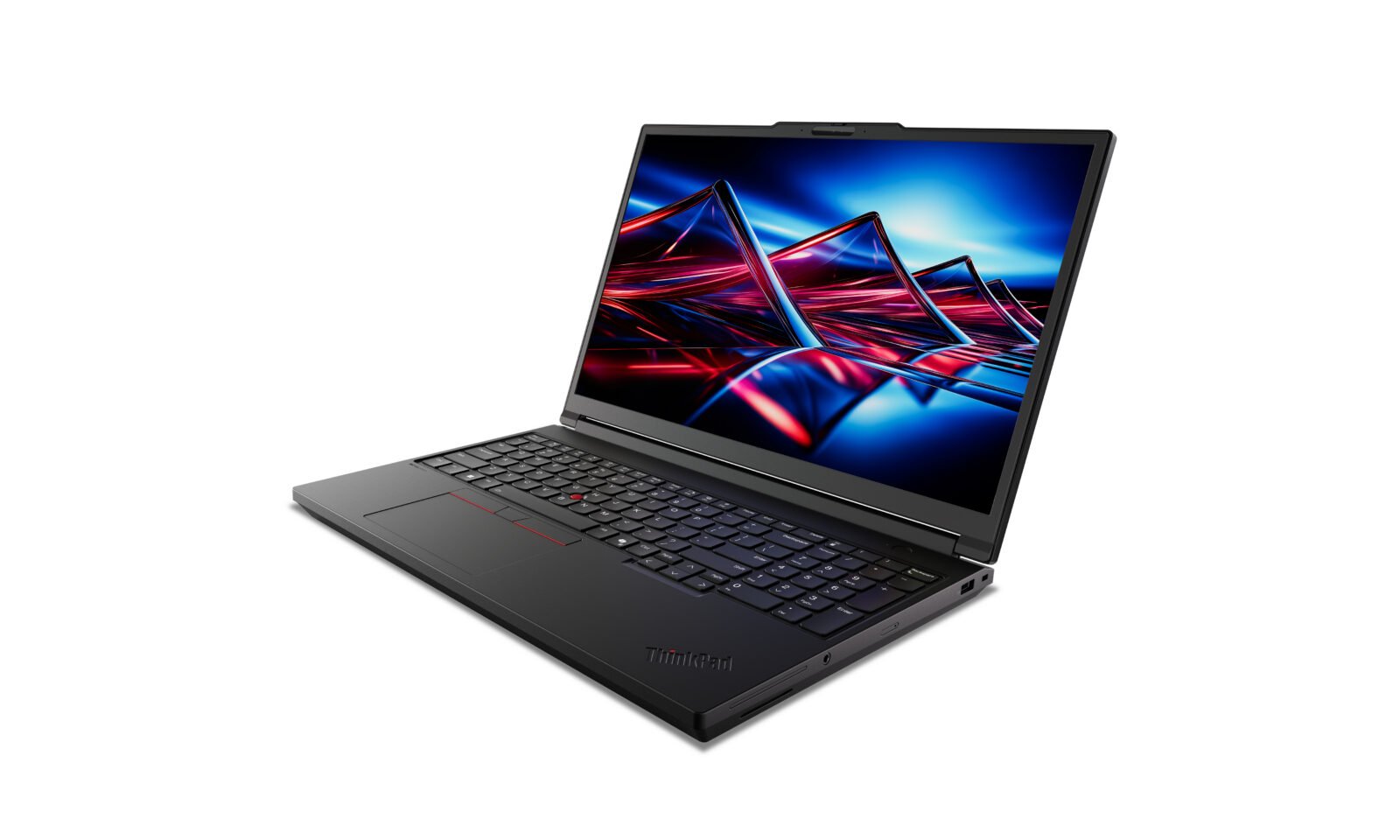

ThinkPad ThinkPad P16 Gen 3
The Lenovo ThinkPad P16 Gen 3 brings together a 20-core Intel Core Ultra 7 255HX, a 16″ WQUXGA display, 32 GB of memory.
What’s inside
Set up locally
Our Southampton team can set it up before pickup: updates, your accounts, printer setup and moving files from your old device. We serve Southampton, Port Elgin, Saugeen Shores, Owen Sound and the surrounding area.
| Processor Family | Intel® HX Series Core Ultra 7 Processor (Series 2); supports up to 24 cores; up to 5.5GHz | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Processor | Intel Core™ Ultra 7 255HX, 20C (8P + 12E) / 20T, Max Turbo up to 5.2GHz, 30MB Intel® Smart Cache | ||||||||
| AI PC Category | AI-Ready Workstations | ||||||||
| NPU | Integrated Intel® AI Boost, up to 13 TOPS | ||||||||
| Operating System | Windows® 11 Pro, English (US) / English (UK) | ||||||||
| Graphics |
| ||||||||
| Monitor Support | Supports up to 5 independent displays (native display and 4 external monitors via Thunderbolt™ 5, Thunderbolt™ 4, and HDMI®). Max resolution for multiple external display: • 3x 3840×2160@240Hz or 7680×4320@60Hz (Thunderbolt™ 5 and Thunderbolt™ 4) • 1x 7680×4320@60Hz (HDMI®) Max resolution for single external display: • Thunderbolt™ 4 supports up to 7680×4320@60Hz or 3840×2160@240Hz • Thunderbolt™ 5 supports up to 7680×4320@60Hz or 3840×2160@240Hz • HDMI® supports up to 7680×4320@60Hz or 3840×2160@240Hz | ||||||||
| Chipset | Intel® WM880 chipset | ||||||||
| Memory | 2x 16GB SODIMM DDR5-5600 Non-ECC | ||||||||
| Max Memory | Models with Non-ECC memory: Up to 192GB (4x 48GB SODIMM DDR5-5600 Non-ECC) | ||||||||
| Memory Slots | Four DDR5 SODIMM slots, dual-channel capable | ||||||||
| Memory Type | DDR5-5600 SODIMM, non-ECC, maximum transfer speeds of up to 5600 MT/s, 8GB / 16GB / 32GB / 48GB memory modules are available | ||||||||
| Max Storage Support | Up to three M.2 2280 Gen 5 Performance SSD; up to 12TB, 4TB each | ||||||||
| Storage Slot | Three M.2 slots • One M.2 2280 PCIe® 5.0 x4 slot • Two M.2 2280 PCIe® 4.0 x4 slots | ||||||||
| Storage Type |
| ||||||||
| Card Reader | SD Express 8.0 card reader | ||||||||
| Audio Chip | SoundWire®, Cirrus Logic® CS42L43 codec | ||||||||
| Speakers | Stereo speakers, 2W x2, Dolby Atmos® | ||||||||
| Microphone | Dual-microphone array, far-field, Dolby Voice®No microphone (for special bid model) | ||||||||
| Camera | 5.0MP + IR with Privacy Shutter and Computer Vision Human Presence Detection on ISP | ||||||||
| Battery | 99.9 Wh | ||||||||
| Power Adapter | 180W USB-C® GaN (3-pin) | ||||||||
| Graphics | NVIDIA® RTX PRO 1000 Blackwell Generation 8GB GDDR7 Laptop GPU | ||||||||
| Max Memory | Models with ECC memory: Up to 128GB (4x 32GB SODIMM DDR5-5600 ECC) Models with Non-ECC memory: Up to 192GB (4x 48GB SODIMM DDR5-5600 Non-ECC) | ||||||||
| Storage | 512GB SSD M.2 2280 PCIe® 5.0×4 Performance NVMe® Opal 2.0 |
| Display |
| ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Touchscreen | Non-touch | ||||||||||||||||||||||||
| Input Device | Pen Not Supported | ||||||||||||||||||||||||
| Keyboard | Backlit, English | ||||||||||||||||||||||||
| Keyboard Backlight | LED backlight | ||||||||||||||||||||||||
| UltraNav | 3-button TrackPoint® pointing device and glass-like Mylar® surface multi-touch touchpad, 67 x 115 mm (2.64 x 4.53 inches) | ||||||||||||||||||||||||
| Dimensions (WxDxH) | 362 x 252 x 15.8 / 20.9 (front / rear), 29.8 (maximum) mm 14.25 x 9.92 x 0.62 / 0.82 (front / rear), 1.17 (maximum) inches | ||||||||||||||||||||||||
| Weight | Starting at 2.54 kg (5.6 lbs) | ||||||||||||||||||||||||
| Case Colour | Black | ||||||||||||||||||||||||
| Case Material | Aluminium (Top), Aluminium (Bottom) | ||||||||||||||||||||||||
| Display |
| ||||||||||||||||||||||||
| Dimensions (WxDxH) | 362 x 252 x 15.8 / 20.9 (front / rear), 29.8 (maximum) mm 14.25 x 9.92 x 0.62 / 0.82 (front / rear), 1.17 (maximum) inches | ||||||||||||||||||||||||
| Weight | Starting at 2.54 kg (5.6 lbs) |
| WLAN + Bluetooth | Intel® Wi-Fi® 7 BE200, 802.11be 2×2 + BT5.4 |
|---|---|
| WWAN | WWAN Not Supported |
| SIM Card | No physical SIM card included |
| Ethernet | 1x 2.5GbE RJ-45 |
| NFC | No NFC |

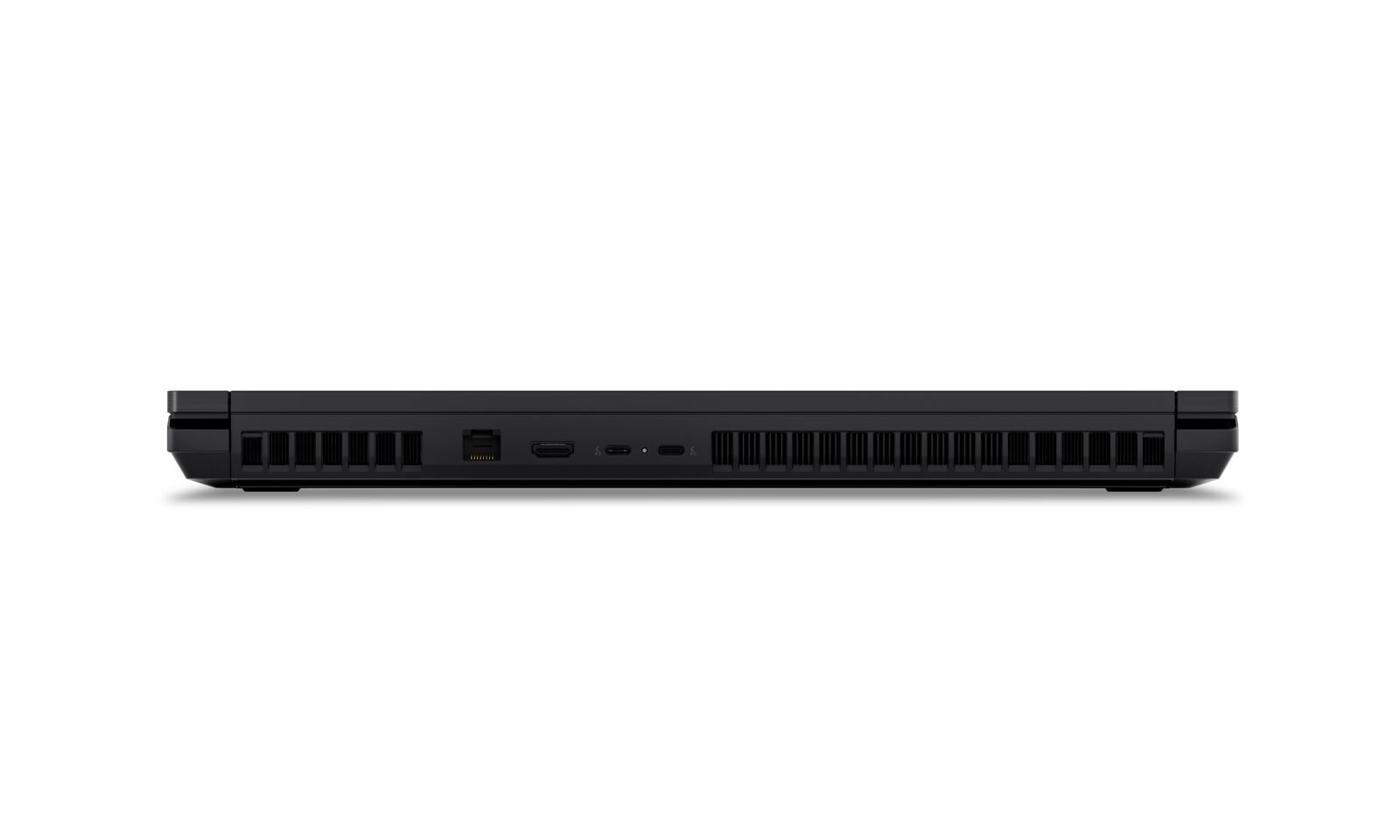

| Standard Ports | 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On 1x USB-A (USB 10Gbps / USB 3.2 Gen 2) 2x Thunderbolt™ 5, with DisplayPort™ 2.1 and USB PD 3.1, 180W input / 15W output 1x Thunderbolt™ 4, with DisplayPort™ 2.1 and USB PD 3.1, 180W input / 15W output 1x HDMI® 2.1, up to 8K/60Hz 1x Headphone / microphone combo jack (3.5mm) 1x Ethernet (2.5GbE RJ-45) 1x SD Express 8.0 card reader 1x Kensington Nano Security Slot™ |
| Docking | Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® P16 Gen 3 |
| Ethernet | 1x 2.5GbE RJ-45 |
| Security Chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
|---|---|
| Physical Locks | Kensington Nano Security Slot™, 2.5 x 6 mm |
| Smart Card Reader | Smart card reader, supports ISO 7816 and EMV No smart card reader |
| Fingerprint Reader | Touch style fingerprint reader integrated in power button, match-on-chip |
| BIOS Security | NVMe® password Power-on password Supervisor password Self-healing BIOS More BIOS security features, please visit BIOS Simulator |
| Other Security | Camera privacy shutter (camera models) Computer Vision-based User Presence Sensing on Image Signal Processor (ISP) |
| System Management | Non-vPro® |
|---|
| Base Warranty | 1-year, Courier or Carry-in |
|---|
| Operating System | Windows® 11 Pro, English (US) / English (UK) |
|---|---|
| Bundled Software | Lenovo® AI Now + ThinkShield Pro (SentinelOne, Sepio, Cigent) 1-year |
