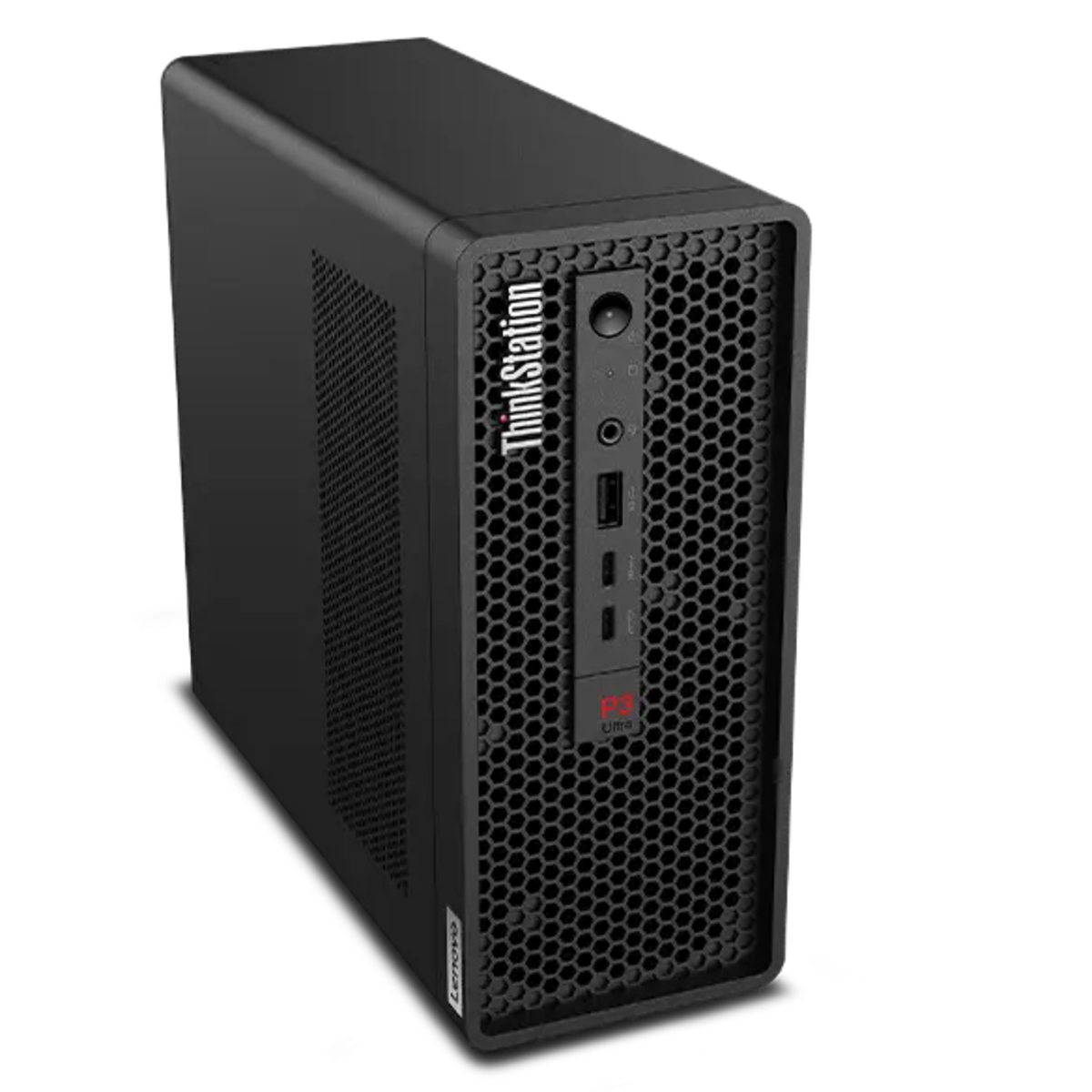

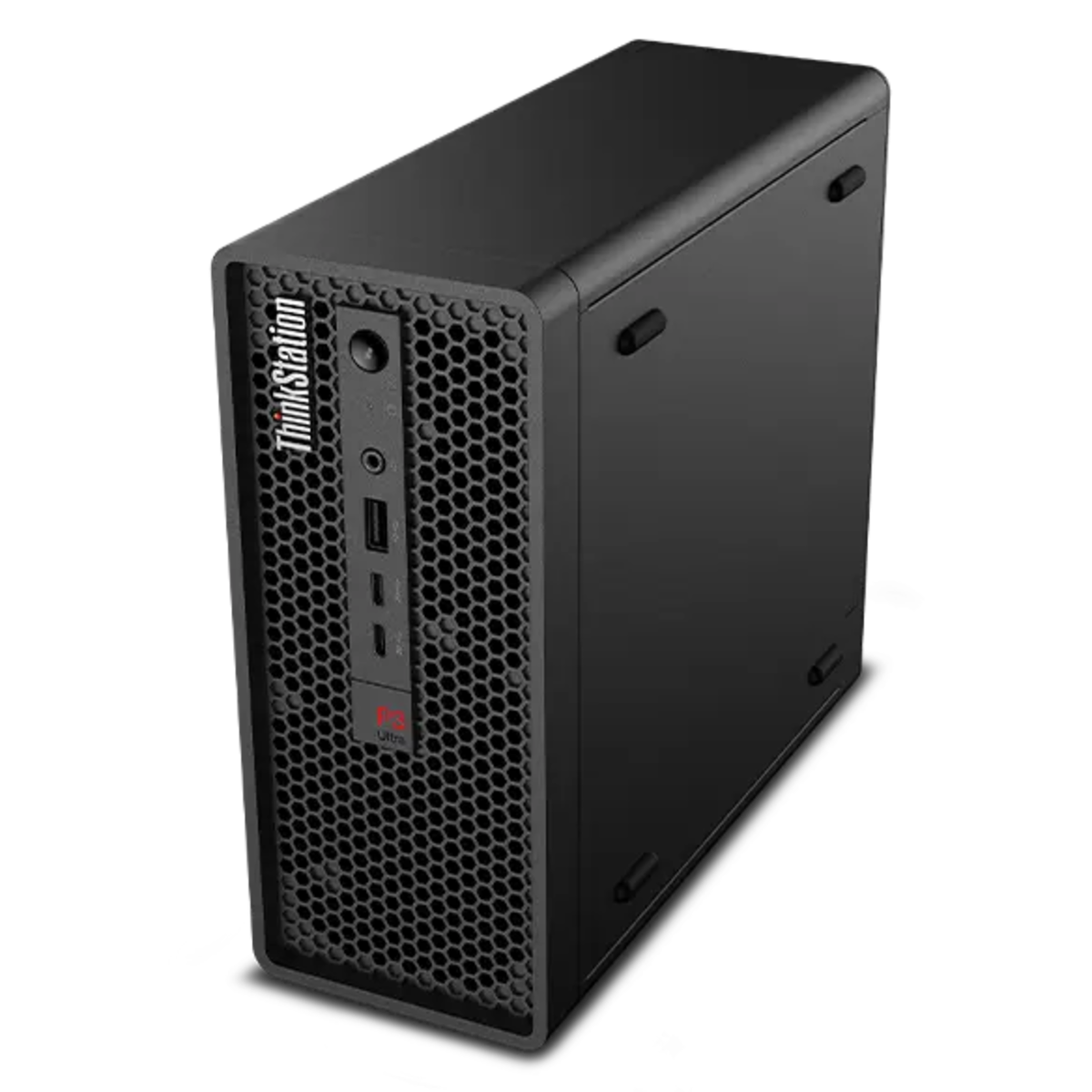

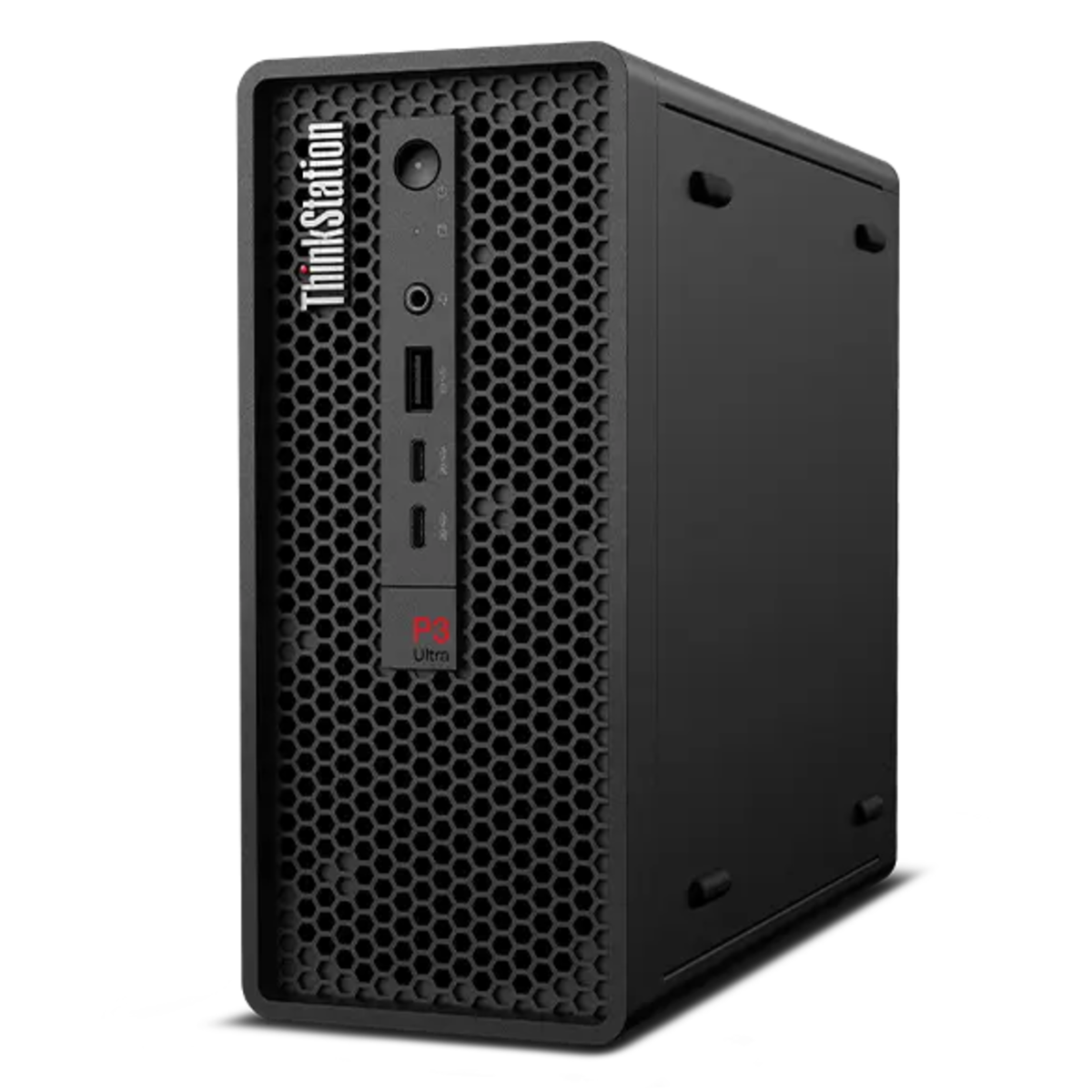

ThinkStation P3 Ultra Small Form Factor Gen 2 (Intel) Workstation

Processor Intel® Core™ Ultra 5, Intel® Core™ Ul…Graphics Integrated, Intel® Arc™ Pro B50, NVID…RAM 32 GB, 48 GB, 64 GB, 128 GBStorage 256 GB

Lenovo

SKU: 30J6000

Out of stock

Request a quote
Free local delivery on orders over $999
1-year warranty + optional protection plan
Setup & support from our certified team

Up to Intel® Core™ Ultra 9, 24 cores, 5.7GHz. Supports one NVIDIA® RTX PRO 4000 Blackwell SFF Edition graphics with 24GB memory. Up to 128GB DDR5 memory at 6400 MT/s. Expandable storage with up to 4x M.2 PCIe® SSDs. AI-optimized performance for demanding workflows.

SKU: 30J6000
Category:
Brands:

Lenovo ThinkStation P3 Ultra SFF Gen 2

Redefining the Power of Small

Experience extraordinary performance in an intelligently compact design. Powered by Intel® Core™ Ultra (Series 2) processors with Intel vPro®, with integrated NPU and optional NVIDIA RTX™ graphics, this workstation breaks new ground by delivering AI-optimized performance and ultimate flexibility in a chassis less than 4L in total volume.

Purpose-Built for Elite Content Creation

Unlock New Levels of Intelligent Performance for Demanding Workflows

Up to Intel® Core™ Ultra 9 (Series 2) processors with Intel vPro®

Potent Combined AI Acceleration

Accelerate AI Workflows with Integrated NPU and Professional Graphics

Push your creative boundaries with next-generation AI – up to 36 TOPS from the system and integrated NPU, plus 192 TOPS from NVIDIA RTX™ Ada graphics. From simulation and modeling to automation, the ThinkStation P2 Tower Gen 2 empowers teams to streamline tasks and innovate faster.

Versatile Performance Acorss Industries

ISV-Certified for Key Workloads

Enterprise-Ready Security & Reliability


CREDIBILITY & COLLABORATION

Sustainability

Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That’s why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Specifications

Performance

Processor FamilyUp to one 125W Intel Core™ Ultra (Series 2) processor; supports up to 24 cores; up to 5.7GHz
Processor
Processor NameCoresThreadsBase FrequencyMax FrequencyCacheMemory SupportProcessor GraphicsNPUIntel vPro EligibilityOverall TOPS
Core Ultra 5 22510 (6 P-core + 4 E-core)10P-core 3.3GHz / E-core 2.7GHzMax Turbo up to 4.9Ghz / P-core 4.9GHz / E-core 4.4GHz22MB L2 Cache / 20MB Intel® Smart CacheDDR5-6400Intel® Graphics, up to 4 TOPSIntel® AI Boost, up to 13 TOPS–Up to 23 TOPS
Core Ultra 5 225T10 (6 P-core + 4 E-core)10P-core 2.5GHz / E-core 1.9GHzMax Turbo up to 4.9GHz / P-core 4.9GHz / E-core 4.4GHz22MB L2 Cache / 20MB Intel® Smart CacheDDR5-6400Intel® Graphics, up to 4 TOPSIntel® AI Boost, up to 13 TOPS–Up to 23 TOPS
Core Ultra 5 23514 (6 P-core + 8 E-core)14P-core 3.4GHz / E-core 2.9GHzMax Turbo up to 5.0GHz / P-core 5.0GHz / E-core 4.4GHz26MB L2 Cache / 24MB Intel® Smart CacheDDR5-6400Intel® Graphics, up to 6 TOPSIntel® AI Boost, up to 13 TOPSIntel® vPro® EnterpriseUp to 27 TOPS
Core Ultra 5 245K14 (6 P-core + 8 E-core)14P-core 4.2GHz / E-core 3.6GHzMax Turbo up to 5.2GHz / P-core 5.2GHz / E-core 4.6GHz26MB L2 Cache / 24MB Intel® Smart CacheDDR5-6400Intel® Graphics, up to 8 TOPSIntel® AI Boost, up to 13 TOPSIntel® vPro® EnterpriseUp to 30 TOPS
Core Ultra 7 26520 (8 P-core + 12 E-core)20P-core 2.4GHz / E-core 1.8GHzMax Turbo up to 5.3GHz / P-core 5.2GHz / E-core 4.6GHz36MB L2 Cache / 30MB Intel® Smart CacheDDR5-6400Intel® Graphics, up to 8 TOPSIntel® AI Boost, up to 13 TOPSIntel® vPro® EnterpriseUp to 33 TOPS
Core Ultra 7 265K20 (8 P-core + 12 E-core)20P-core 3.9GHz / E-core 3.3GHzMax Turbo up to 5.5GHz / P-core 5.4GHz / E-core 4.6GHz36MB L2 Cache / 30MB Intel® Smart CacheDDR5-6400Intel® Graphics, up to 8 TOPSIntel® AI Boost, up to 13 TOPSIntel® vPro® EnterpriseUp to 33 TOPS
Core Ultra 7 265T20 (8 P-core + 12 E-core)20P-core 1.5GHz / E-core 1.2GHzMax Turbo up to 5.3GHz / P-core 5.2GHz / E-core 4.6GHz36MB L2 Cache / 30MB Intel® Smart CacheDDR5-6400Intel® Graphics, up to 8 TOPSIntel® AI Boost, up to 13 TOPSIntel® vPro® EnterpriseUp to 33 TOPS
Core Ultra 9 28524 (8 P-core + 16 E-core)24P-core 2.5GHz / E-core 1.9GHzMax Turbo up to 5.6GHz / P-core 5.4GHz / E-core 4.6GHz40MB L2 Cache / 36MB Intel® Smart CacheDDR5-6400Intel® Graphics, up to 8 TOPSIntel® AI Boost, up to 13 TOPSIntel® vPro® EnterpriseUp to 36 TOPS
Core Ultra 9 285K24 (8 P-core + 16 E-core)24P-core 3.7GHz / E-core 3.2GHzMax Turbo up to 5.7GHz / P-core 5.5GHz / E-core 4.6GHz40MB L2 Cache / 36MB Intel® Smart CacheDDR5-6400Intel® Graphics, up to 8 TOPSIntel® AI Boost, up to 13 TOPSIntel® vPro® EnterpriseUp to 36 TOPS
Core Ultra 9 285T24 (8 P-core + 16 E-core)24P-core 1.4GHz / E-core 1.2GHzMax Turbo up to 5.4GHz / P-core 5.3GHz / E-core 4.6GHz40MB L2 Cache / 36MB Intel® Smart CacheDDR5-6400Intel® Graphics, up to 8 TOPSIntel® AI Boost, up to 13 TOPSIntel® vPro® EnterpriseUp to 35 TOPS
Processor Sockets1x FCLGA1851
AI PC CategoryAI-Ready Workstations
Operating SystemWindows® 11 Pro
Windows® 11 Home
Windows® 11 Home Single Language
Windows® 11 IoT Enterprise LTSC 2024
Ubuntu Linux LTS
Red Hat Enterprise Linux 10 (certified only)
Integrated GraphicsIntel® Graphics
Discrete Graphics SupportSupports up to one NVIDIA® RTX PRO 4000 Blackwell SFF Edition; or two Nvidia RTX A1000
Discrete Graphics Offering
GraphicsMemoryPowerConnectorForm Factor
NVIDIA® RTX PRO 4000 Blackwell SFF Edition24GB GDDR7 with ECC70W4x miniDP 2.1Dual slot
NVIDIA® RTX PRO 2000 Blackwell16GB GDDR7 with ECC70W4x miniDP 2.1Dual slot
NVIDIA® RTX 4000 SFF Ada Generation20GB GDDR6 with ECC70W4x miniDP 1.4aDual slot
NVIDIA® RTX 2000 Ada Generation16GB GDDR6 with ECC70W4x miniDP 1.4aDual slot
NVIDIA® T1000 8GB8GB GDDR650W4x miniDP 1.4Single slot
NVIDIA® RTX A10008GB GDDR650W4x miniDP 1.4aSingle slot
NVIDIA® RTX A4004GB GDDR650W4x miniDP 1.4aSingle slot
Intel® Arc™ Pro B50 Graphics 16GB GDDR616GB GDDR6 with ECC70W4x miniDP 2.1Dual slot
MonitorSupportSupports up to 12 independent displays, 4 via onboard ports (3x DP and 1x optional Thunderbolt™ 4) and 8 via two discrete graphics cards (2x NVIDIA® RTX A1000 / A400). Onboard ports support (with max simultaneous displays): • DP supports up to 4096×2160@60Hz • Thunderbolt™ supports up to 5120×2880@60Hz Discrete graphics cards ports support (with max simultaneous displays): • miniDP supports up to 7680×4320@60Hz
ChipsetIntel® W880 chipset
Max MemoryUp to 128GB (2x 64GB DDR5 CSODIMM)
Memory TypeDDR5-5600 SODIMM, ECC or non-ECC, maximum transfer speeds of up to 5600 MT/s
DDR5-6400 CSODIMM, ECC or non-ECC, maximum transfer speeds of up to 6400 MT/s
Memory SlotsTwo DDR5 SODIMM slots, dual-channel capable
Memory ProtectionECC on models with ECC DIMMs
Max Storage SupportUp to 4x M.2 PCIe® SSD
• M.2 SSD up to 4TB each
Storage Type
Disk TypeInterfaceOfferingSecurity
M.2 SSD for 1x onboard M.2 PCIe® 5.0 slotNVMe®, PCIe® 4.0 x4Gen 5 Performance SSD: 512GB / 1TB / 2TB / 4TB Gen 4 Performance SSD: 512GB / 1TB / 2TB / 4TB Gen 4 SSD: 256GBOpal 2.0
M.2 SSD for 2x onboard M.2 PCIe® 4.0 slotsNVMe®, PCIe® 4.0 x4Gen 5 Performance SSD: 512GB / 1TB / 2TB / 4TB Gen 4 Performance SSD: 512GB / 1TB / 2TB / 4TB Gen 4 SSD: 256GBOpal 2.0
M.2 SSD for 1x M.2 PCIe® 3.0 slot (by Single M.2 to PCIe® Adapter)NVMe®, PCIe® 4.0 x4Gen 4 Performance SSD: 512GB / 1TB / 2TB / 4TB Gen 4 SSD: 256GBOpal 2.0
Storage Controllers
Storage ControllerTypeInterfaceRAIDCache
Integrated NVMe® controllerStandardPCIe® NVMe®0/1/5None
Audio ChipHigh Definition (HD) Audio, Realtek® ALC623-CG codec
SpeakersSingle speaker, 2W x1
Power Supply
PowerTypeEfficiencyKey Features
170WAdapter90%100V – 240V
230WAdapter90%100V – 240V
245WAdapter90%Autosensing
330WAdapter90%100V – 240V

Design

Form FactorMini-tower (3.9L)
Dimensions (WxDxH)87 x 223 x 202 mm
Weight3.6 kg
M.2 SlotsOne M.2 slot (for WLAN)
Up to 4x M.2 slots for M.2 SSD:
• 2 onboard M.2 PCIe® 4.0 slots, supports M.2 PCIe® 4.0 SSD. Only one slot is available when 3.5″ HDD is selected
• 1 onboard M.2 PCIe® 5.0 slot, supports M.2 PCIe® 5.0 or M.2 PCIe® 4.0 SSD
• 1 via Single M.2 to PCIe® adapter, supports M.2 PCIe® 4.0 and runs at PCIe® 3.0, can’t be available when 3.5″ HDD is selected
Expansion SlotsThree or two PCIe® slots depending on riser card selection.
• Three slots configuration:
– Slot 1: PCIe® 4.0 x16 (x8 lanes), by riser card
– Slot 2: PCIe® 4.0 x16 (x8 lanes), by riser card
– Slot 3: PCIe® 4.0 x8 (x4 lanes), onboard
• Two slots configuration:
– Slot 1: PCIe® 4.0 x16, by riser card
– Slot 2: PCIe® 4.0 x8 (x4 lanes), onboard
EOUTool-less design for side cover and memory

Connectivity

WLAN + BluetoothIntel® Wi-Fi® 7 BE200, 802.11be 2×2 Wi-Fi® + Bluetooth® 5.4, Intel® vPro® technology support No WLAN and Bluetooth®
Optional EthernetOne additional Ethernet adapter support, up to two additional 25GbE ports
• Gigabit Ethernet, Intel® I350-T2, 2x RJ-45, PCIe® x4
• Gigabit Ethernet, Intel® I350-T4, 4x RJ-45, PCIe® x4
• Gigabit Ethernet, Broadcom BCM5719, 4x RJ-45, PCIe® x4
• Gigabit Ethernet, Broadcom BCM5720, 2x RJ-45, PCIe® x1
• 10 Gigabit Ethernet, Intel® X710-T2L, 2x RJ-45, PCIe® x8
• 25 Gigabit Ethernet, NVIDIA® Mellanox ConnectX-6, 2x SFP28, PCIe® x8

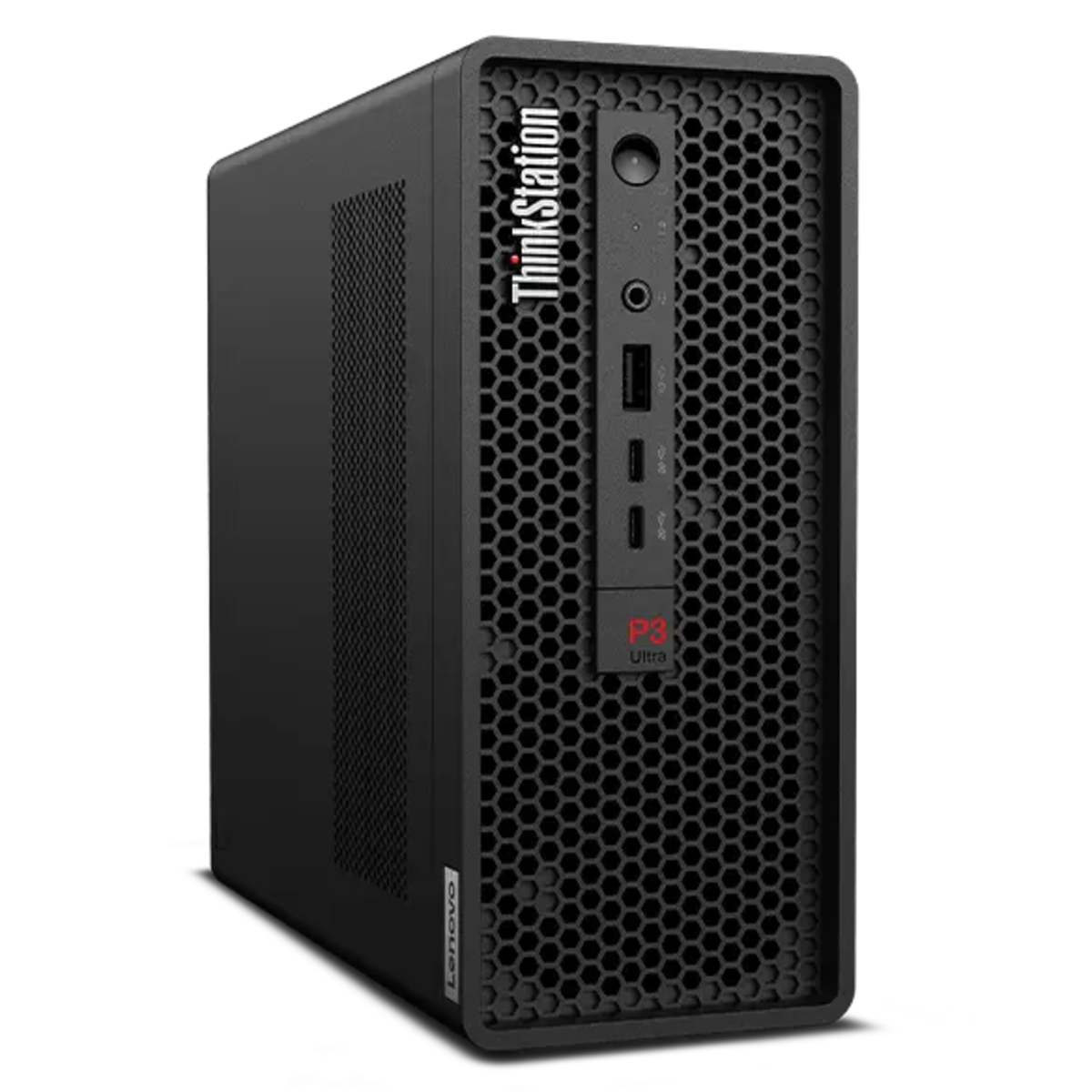

Front Ports2x USB-C® (USB 20Gbps / USB 3.2 Gen 2×2), data transfer only
1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)

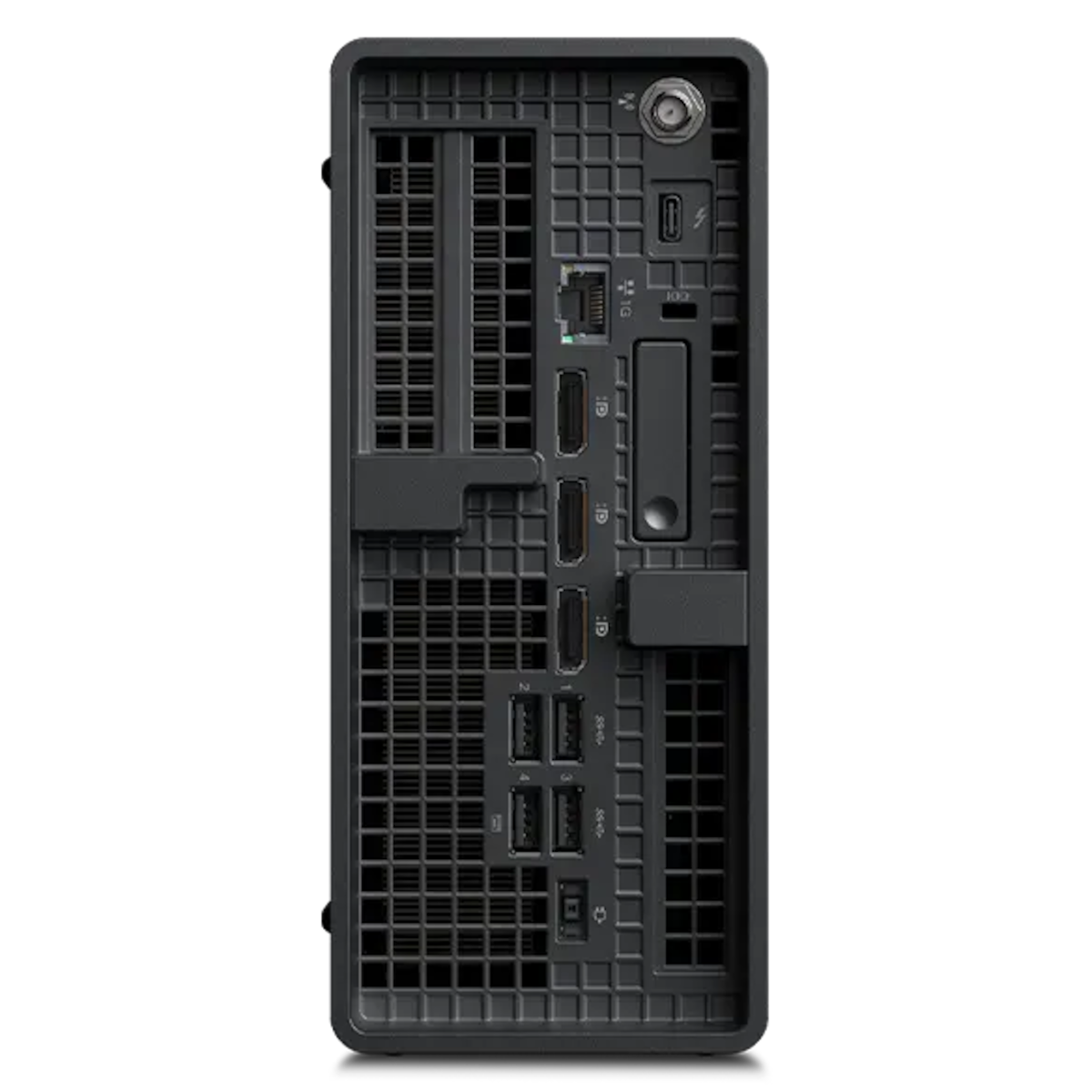

Rear Ports4x USB-A (USB 10Gbps / USB 3.2 Gen 2)
3x DisplayPort™ 1.4
1x Ethernet (GbE RJ-45)
Optional Rear Ports1x Thunderbolt™ 4
1x serial (via cable)
4x serial (via 4-port serial expansion card, PCIe® x1)

Security & Privacy

Security ChipDiscrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical LocksKensington Security Slot™, 3 x 7 mm
Chassis Intrusion SwitchChassis intrusion switch
BIOS SecurityAdministrator password
UEFI Secure Boot
Power-on password
Self-healing BIOS

Manageability

Systems Management(Optional) Aspeed AST2600 graphics / management processor, IPMI 2.0-compliant baseboard management controller (BMC)
(Optional) Intel® vPro® Enterprise with Intel® AMT 16
