Lenovo ThinkCentre M70s Gen 5 (Intel) Small Form Factor

Call 519-483-3560 for pricing and specific model information

  • Up to 14th Gen Intel® Core™ i7-14700
  • Up to Windows® 11 Pro
  • Up to Intel® Arc™ A310 4GB
  • Up to 64GB DDR5, two DIMM slots Support up to three drives, 1x 3.5″ HDD + 1x open 2.5″ HDD bay + 1x M.2 SSD
Category: Brand:

Features

Intelligent Performance With AI Enhancements

The Lenovo ThinkCentre M70s Gen 5 SFF desktop constantly adapts and learns from your usage patterns to optimize power usage and dynamically allocate resources. No more overheating woes as the AI-driven fan control keeps your device cool, reducing temperature and noise. Plus, the power optimization feature enhances energy efficiency.

Left side view of Lenovo ThinkCentre M70s Gen 5 small form factor desktop, showing ports & slots, connected to a monitor, with a wireless keyboard and a mouse.
Right facing Lenovo ThinkCentre M70s Gen 5 small form factor desktop, showing ports & slots, connected to a monitor, with a wireless keyboard and a mouse.

Enhanced Productivity

The ThinkCentre M70s Gen 5 SFF desktop is a powerhouse of productivity powered by up to 14th Gen Intel® Core™ processor with Intel vPro® Enterprise to accomplish more with less effort. Unlock boundless creativity with integrated Intel® graphics. Plus, this small form factor handles complex data operations with ease thanks to ample memory and storage.

Unmatched Security

Protect your data and business with ThinkShield, our comprehensive suite of security solutions, featuring the discrete Trusted Platform Module (dTPM) to safeguard critical data with encryption. Physical security is reinforced with Kensington Security Slot™, optional chassis e-locks, and more, offering unparalleled security.

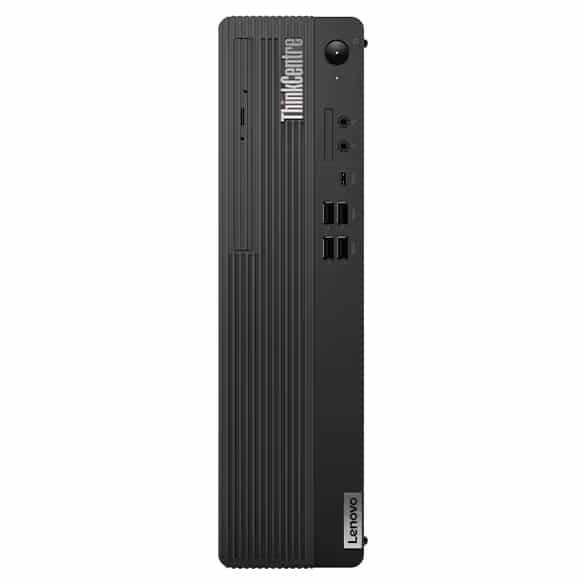

Front forward-facing Lenovo ThinkCentre M70s Gen 5 small form factor desktop, connected to two monitors and with a wireless keyboard and a mouse.
Rear view of Lenovo ThinkCentre M70s Gen 5 small form factor desktop, showing ports & slots, connected to a monitor, with a wireless keyboard and a mouse.

Multitasking Flexibility

The ThinkCentre M70s Gen 5 Small Form Factor makes multitasking a breeze with multiple ports and expansion slots. Moreover, it’s easy to deploy from both a software and hardware standpoint.

Redefining Sustainability

The ThinkCentre M70s SFF desktop PC uses 90% post-industry content (PIC) recycled materials expanded polyethylene (EPE) cushion, 60% post-consumer content (PCC) recycled plastic, 30% ocean-bound plastic (OBP) thermal shell and 30% OBP bag and Forest Stewardship Council® (FSC) certified carton in packaging. The chassis uses 85% PCC acrylonitrile butadiene styrene (ABS).

Front forward-facing Lenovo ThinkCentre M70s Gen 5 small form factor desktop, connected to two monitors and with a wireless keyboard and a mouse.

Ports & Slots

  1. Power button
  2. Optional: Slim ODD
  3. Optional: card reader (3-in-1)
  4. USB-C® (USB 5Gbps)
  5. 4 X USB-A (USB 5Gbps)
  6. Mic
  7. Headphone / mic combo
  8. DisplayPort 1.4a
  9. HDMI® 2.1 (supports resolution up to 4K@60Hz)
  10. 4 x USB-A (hi-speed USB)
  11. Kensington Security Slot™
  12. Optional: 2 x PS/2 ports (keyboard / mouse)
  13. Ethernet (RJ45)
  14. Optional: Ports on expansion cards
  15. Power connector

Processor / Processor Type

13th / 14th Generation Intel® Core i3 / i5 / i7 Processor
Processor / Processor

Core i3-14100, 4 (4 P-core + 0 E-core), 8 Threads, P-core 3.5GHz P-core 4.7GHz 12MB Cache, Intel® UHD Graphics 730
Core i5-14400, 10 (6 P-core + 4 E-core), 16 Threads, P-core 2.5GHz / E-core 1.8GHz, P-core 4.7GHz / E-core 3.5GHz, 20MB Cache, Intel® UHD Graphics 730
Core i5-14500, 14 (6 P-core + 8 E-core), 20 Threads, P-core 2.6GHz / E-core 1.9GHz, P-core 5.0GHz / E-core 3.7GHz, 24MB Cache, Intel® UHD Graphics 770
Core i7-14700, 20 (8 P-core + 12 E-core), 28 Threads, P-core 2.1GHz / E-core 1.5GHz, Max Turbo up to 5.4GHz / P-core 5.3GHz / E-core 4.2GHz, 33MB Cache, Intel® UHD Graphics 770
Operating System / Operating System

Windows® 11 Pro
Graphics / Graphics

Intel® UHD graphics 730, Integrated, Shared, 4096×2304@60Hz(DP) / 4096×2160@60Hz(HDMI®), 1x DP 1.4a (HBR2, DSC), 1x HDMI® 2.1 TMDS, DirectX® 12
Intel® UHD graphics 770, Integrated, Shared, 4096×2304@60Hz(DP) / 4096×2160@60Hz(HDMI®), 1x DP 1.4a (HBR2, DSC), 1x HDMI® 2.1 TMDS, DirectX® 12
Intel® Arc™ A310 LP Graphics, Discrete, 4GB GDDR6, 7680×4320@60Hz(DP), 2x DisplayPort™ 2.0, DirectX® 12, OpenGL 4.6
Monitor Support / Monitor Support

Supports up to 2 independent displays via onboard ports (1x DP and 1x HDMI®), more displays support via discrete graphics
Chipset / Chipset

Intel® Q670 chipset
Memory / Max Memory

Up to 64GB DDR5
Memory / Memory Slots

Two DDR5 UDIMM slots, dual-channel capable
Memory / Memory Type

DDR5-4800
DDR5-5200
DDR5-5600
Storage / Storage Support

Up to three drives, 1x 3.5" HDD + 1x 2.5" HDD + 1x M.2 SSD
• 3.5" HDD up to 2TB
• 2.5" HDD bay is only for customer self upgrade
• M.2 SSD up to 2TB each
Storage / Storage Type

3.5" SATA HDD, SATA 6Gb/s, 7.2K, –
M.2 2280 SSD, PCIe® NVMe® PCIe® 4.0 x4, -, Opal 2.0
Removable Storage / Optical

DVD burner (DVD±RW), SATA connector, slim (9.0mm)
Removable Storage / Card Reader

No card reader
Multimedia / Audio Chip

High Definition (HD) Audio, Realtek® ALC623-CG codec
Multimedia / Speakers

Single speaker, 1W x1
Power Supply / Power Supply

260W, Fixed, 90%, 100-240V, 50-60Hz
Input Device / Keyboard

Lenovo® Traditional Keyboard (USB connector), black
Input Device / Mouse

Lenovo® Calliope Mouse (USB connector), black
Mechanical / Form Factor

SFF (8.2L)
Mechanical / Dimensions (WxDxH)

92.5 x 297.7 x 339.5 mm
Mechanical / Packaging Dimensions (WxDxH)

195 x 395 x 530 mm
Mechanical / Weight

Around 5.3 kg
Mechanical / Packaging Weight

Around 7.6 kg
Mechanical / Colour

Black
Mechanical / Bays

1x 3.5" disk bay
1x slim ODD bay
Mechanical / Expansion Slots

One PCIe® 3.0 x16, low-profile, length ≤ 155mm, height ≤ 70mm
One PCIe® 3.0 x1, low-profile, length ≤ 155mm, height ≤ 70mm
Two M.2 slots (one for WLAN, one for SSD)
Mechanical / EOU

Toolless cover, memory, disk, optical, extension card assembly / removal
Mechanical / Stand

Vertical stand
Mechanical / Others

Supports Smart Power On
Connectivity / Ethernet

Gigabit Ethernet, Intel® Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN
Connectivity / WLAN + Bluetooth

Intel® Wi-Fi® 6E AX211, 802.11ax 2×2 Wi-Fi® + Bluetooth® 5.3, Intel® vPro® technology support, M.2 Card
Ports / Front Ports

1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x headphone / microphone combo jack (3.5mm)
1x microphone (3.5mm)
Ports / Rear Ports

4x USB-A (Hi-Speed USB / USB 2.0)
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4a (HBR2, DSC)
1x Ethernet (RJ-45)
Security / Security Chip

Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Security / Physical Locks

Kensington® Security Slot, 3 x 7 mm
Padlock Loop
Security / BIOS Security

Administrator password
Hard disk password
Power-on password
Boot sequence control
Boot without keyboard and mouse
Certificate based BIOS authentication
Individual USB port disablement
Self-healing BIOS
Smart USB protection (allows keyboard / mouse only, blocks all storage devices)
System Management / System Management

Intel® vPro® Enterprise
Non-vPro®
Warranty / Base Warranty

1-year limited onsite service
3-year limited onsite service
