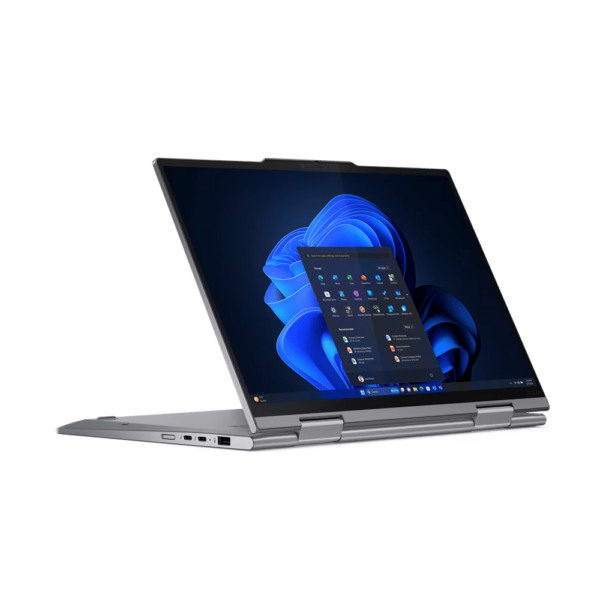

Lenovo ThinkPad X1 2-in-1 Gen 9 (14″ Intel)

  • 14″ laptop, tablet, sketchpad & more, with the optional magnetic stylus
  • Handles demanding workloads even unplugged with AI-powered Intel® Core™ Ultra processors
  • All-day battery life, instant wake, & Intel® Unison™ on the Intel® Evo™ Edition
  • Sublime sound with Dolby Voice®, Dolby Atmos®, & Zoom-certification
  • Ideal for tech enthusiasts seeking one device to do it all

Ports & Slots

Two Lenovo ThinkPad E16 (16″ Intel) laptops – right and left side views, lids open, back to back, with ports and slots numbered for identification
  1. USB-A (5Gbps, always on)
  2. 2 x USB-C Thunderbolt 4 (40Gbps)
  3. Optional nano SIM slot
  4. Power button
  5. Headphone / mic combo
  6. USB-A (5Gbps)
  7. HDMI 2.1
  8. Kensington Nano Security Slot

Features

Put AI to Work for You

With Intel® Core™ Ultra processors, the ThinkPad X1 2-in-1 Gen 9 brings AI power to the forefront. Enjoy optimized performance with dedicated AI engines, including the low-power neural processing unit (NPU) that enables you to do more on battery power. Multitask away with the speed of LPDDR5x memory. So go ahead and turn on auto-framing, background blur, or low-light enhancement for online meetings, even when unplugged! Choose the Intel vPro® Evo™ Edition, for multilayer security, professional-grade performance, reliable stability, and complete management for IT.

Keeps Its Cool

Keep up with demanding workloads without breaking a sweat — and your device keeps cool too. Our team of dedicated engineers increased the thermal capability from the previous generation by 44% on the ThinkPad X1 2-in-1 Gen 9 laptop, all while remaining superquiet! Dual-design fans disperse the heat so that even when you push the system to handle multichallenges, it stays cool.

The Write Inspiration

The 9th generation of the ThinkPad X1 2-in-1 delights even the most discerning tech enthusiasts. We’ve re-imagined the placement of the stylus and how it fits with the device. Now, the even larger optional Lenovo Slim Pen, inspired by a carpenter’s pencil, attaches to the side of the keyboard frame magnetically, so it’s always at arm’s reach. Sketch, take notes, or use it to gain even more precision in apps. And the best part? When you close the lid, the pen remains firmly attached, even when carried.

Our Legendary Keyboard, Now Even Better

Our redesigned ThinkPad keyboard now includes tactile markings to help visually impaired folks easily find the correct keys. We’ve moved the fingerprint reader to the keyboard, resulting in a larger sensor for a better experience. Plus, our TrackPad is even bigger now, at 120mm / 4.72″. Our beloved red TrackPoint still lets you navigate — but with a double tap, it opens the ThinkPad TrackPoint Quick Menu to optimize audio-visuals, set alerts against muting, and even take notes with the Dictation Toolbar for handy speech-to-text transcription.

Shop With Your Values

The ThinkPad X1 2-in-1 Gen 9 uses 75% recycled aluminum on the top cover, while the bottom cover blends 55% recycled aluminum with 45% hydro aluminum. The keyboard frame relies on 90% recycled magnesium for the WWAN models, or 75% recycled aluminum without it. Plus, many of the components used to create this laptop rely on post-consumer-content (PCC) recycled plastic, from the speaker enclosure to the power adapter, to the keycaps and more. And the packaging is 100% plastic-free and comprised in part of rapid-renewable materials made from bamboo-sugar-cane fibre.

Raise the Bar on Collaboration

A Communications Bar houses two cameras atop the display — choose the premium option for the combo 8MP and infrared (IR) Mobile Industry Processor Interface (MIPI) webcam with Computer Vision. Two 360-degree mics with AI-based noise cancellation, combined with the Dolby® suite deliver an amazing audio experience through speakers that are concealed beneath the keyboard. What’s more, the speakers are made from vibration-resistant materials with lubricant mechanisms that lift the keycaps, so you can enjoy the premium aesthetic and sublime sound.

Make Your 2-in-1 Your Hub

The Intel® Evo™ Edition, ThinkPad X1 2-in-1 Gen 9 laptop is engineered to do it all. Experience all-day battery life, instant wake, and best-in-class connectivity. No matter what tasks you tackle, this device is highly responsive. Plus, with Intel® Unison™, you can sync your laptop with any iOS or Android smartphone and then call, text, or transfer files, photos, and videos all from the convenience of your PC.

Unleash Superpowers

Get the most out of your device with preinstalled Lenovo apps. Lenovo View is an AI-based camera app that enhances video quality and provides intelligent collaboration, privacy, and digital wellness features. Lenovo Vantage centralizes settings to safeguard data, automate updates, and improve performance — or Lenovo Commercial Vantage for IT manageability. We make it easier and safer to do your job well.

Known for Reliability

We use the US Department of Defense’s MIL-STD 810H to create a balance of reliability and durability for ThinkPad laptops. Meeting or exceeding 12 standards, 26 procedures, and 200+ quality checks ensure that these devices run in extreme conditions, including harsh variables like Arctic wilderness, desert dust storms, extreme temps, pressure, humidity, vibration, and more.

Your Face. Your Fingerprint. Your Fortress.

Biometrics provide extra protection on the ThinkPad X1 2-in-1 Gen 9 laptop, from the fingerprint reader to facial recognition software. ThinkShield, our comprehensive suite of security solutions, boasts discrete Trusted Platform Module (dTPM) to safeguard critical data with encryption. Plus, AI-powered Intel® Threat Detection Technology helps prevent ransomware, cryptojacking, and more. When it comes to security and protecting your assets, we’ve got you covered!

Processor / Processor Family

Intel® U Series Core™ Ultra 5 / 7 Processor (Series 1)

Processor / Processor

Core Ultra 5 125U (12 cores, 14 threads, 1.3GHz base, 4.3GHz max, 12MB)
Core Ultra 5 135U (12 cores, 14 threads, 1.6GHz base, 4.4GHz max, 12MB)
Core Ultra 7 155U (12 cores, 14 threads, 1.7GHz base, 4.8GHz max, 12MB)
Core Ultra 7 165U (12 cores, 14 threads, 1.7GHz base, 4.9GHz max, 12MB)

Operating System / Operating System

Windows 11 Pro

Graphics / Graphics

Intel Graphics, Integrated, Shared

Chipset / Chipset

Intel SoC (System on Chip) platform

Memory / Max Memory

16GB soldered memory, not upgradable
32GB soldered memory, not upgradable
64GB soldered memory, not upgradable

Memory / Memory Slots

Memory soldered to systemboard, no slots, 8-channel

Memory / Memory Type

LPDDR5x-6400

Storage / Storage Support

One drive, up to 2TB M.2 2280 SSD

Storage / Storage Slot

ONe M.2 2280 PCIe 4.0 x4 slot

Storage / Storage Type

M.2 2280 SSD, PCIe NVMe PCIe 4.0 x4, 256GB / 512GB / 1TB, Opal 2.0
M.2 2280 SSD, PCIe NVMe PCIe 4.0 x4 Performance, 512GB / 1TB / 2TB, Opal 2.0

Removable Storage / Card Reader

No card reader

Multimedia / Audio Chip

High Definition (HD) Audio, Realtek ALC3306 codec

Multimedia / Speakers

Stereo speakers, 2W x2, Dolby® Atmos®

Multimedia / Microphone

Dual-microphone array, far-field, Dolby Voice

Multimedia / Camera

FHD 1080p + IR discrete, with privacy shutter, fixed focus
UHD 8.0MP + IR discrete, with privacy shutter, MIPI, fixed focus, Computer Vision

Battery / Battery

Integrated Li-Polymer 57Wh battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter

Power Adapter / Power Adapter

45W USB-C® (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
45W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
65W USB-C® (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
65W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
65W USB-C® slim (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
65W USB-C® slim (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz

Display / Display

14" WUXGA (1920×1200), Multi-touch, IPS, 400nits, Anti-glare/anti-smudge, 16:10, 1000:1, 100% sRGB, 60Hz
14" WUXGA (1920×1200), Multi-touch, IPS, 400nits, Anti-reflection/anti-smudge, 16:10, 1000:1, 100% sRGB, 60Hz
14" WUXGA (1920×1200), Multi-touch, IPS, 500nits, Anti-glare/anti-reflection, 16:10, 1000:1, 100% sRGB, 60Hz
14" 2.8K (2880×1800), Multi-touch, OLED, 400nits, Anti-reflection/anti-smudge, 100,000:1, 100% DCI-P3, 120Hz

Display / Touchscreen

OGS (One Glass Solution) multi-touch, supports 10-point touch

Mutli-mode

Laptop, tent, stand, and tablet modes supported by 360° hinge

Pen

Lenovo Slim Pen
No pen (purchase separately)

Input Device / Keyboard

6-row, spill-resistant, air intake design, multimedia Fn keys

Input Device / Keyboard Backlight

LED backlight

Input Device / UltraNav

TrackPoint® pointing device, double-tap to open the TrackPoint® Quick Menu
– Glass surface multi-touch Haptic Touchpad, 70.9 x 120 mm (2.76 x 4.72 inches)
TrackPoint® pointing device, double-tap to open the TrackPoint® Quick Menu
– Glass surface multi-touch 3-button Trackpad, 56 x 120 mm (2.24 x 4.72 inches)

Mechanical / Dimensions (WxDxH)

312.80 x 217.65 x 15.49 mm

Mechanical / Weight

Starting at 1.35 kg

Mechanical / Case Colour

Grey

Mechanical / Case Material

Aluminium (top), aluminium (bottom)

Network / Ethernet

No onboard Ethernet

Network / WLAN + Bluetooth

Intel® Wi-Fi® 6E AX211, 802.11ax 2×2 Wi-Fi® + Bluetooth® 5.3
Intel® Wi-Fi® 7 BE200, 802.11be 2×2 Wi-Fi® + Bluetooth® 5.3

Network / WWAN

Wireless WAN upgradable to 4G or 5G (with antenna ready)
Quectel EM160R-GL, 4G LTE CAT16, M.2 card, with embedded eSIM functionality
Quectel RM520N-GL, 5G Sub-6 GHz, M.2 Card, with embedded eSIM functionality
No support

Network / SIM Card

No physical SIM card inbox

Network / NFC

Near Field Communications
No support

Ports / Standard Ports

1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)

Docking / Docking

Various docking solutions supported via Thunderbolt or USB-C

Security / Security Chip

Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Security / Physical Locks

Kensington® Nano Security Slot™, 2.5 x 6 mm

Security / Smart Card Reader

No smart card reader

Security / Fingerprint Reader

Touch style fingerprint reader in keyboard key, match-on-chip

Security / BIOS Security

Power-on password
Supervisor password
System management password
NVMe® password
FIDO (Fast Identity Online) authentication
Certificate based BIOS authentication
Self-healing BIOS

Security / Other Security

Computer Vision-based User Presence Sensing including lock on leave (UHD 8.0MP + IR camera models)
IR camera for Windows® Hello (facial recognition)
Ultrasonic Human Presence Detection (FHD 1080p + IR camera models)
Camera privacy shutter
(Optional) Privacy Guard with Privacy Alert

System Management / System Management

Intel vPro Enterprise
Non-vPro

Warranty / Base Warranty

1-year courier or carry-in service
1-year limited onsite service
3-year (1-yr battery) courier or carry-in service
3-year (1-yr battery) limited onsite service
